Description

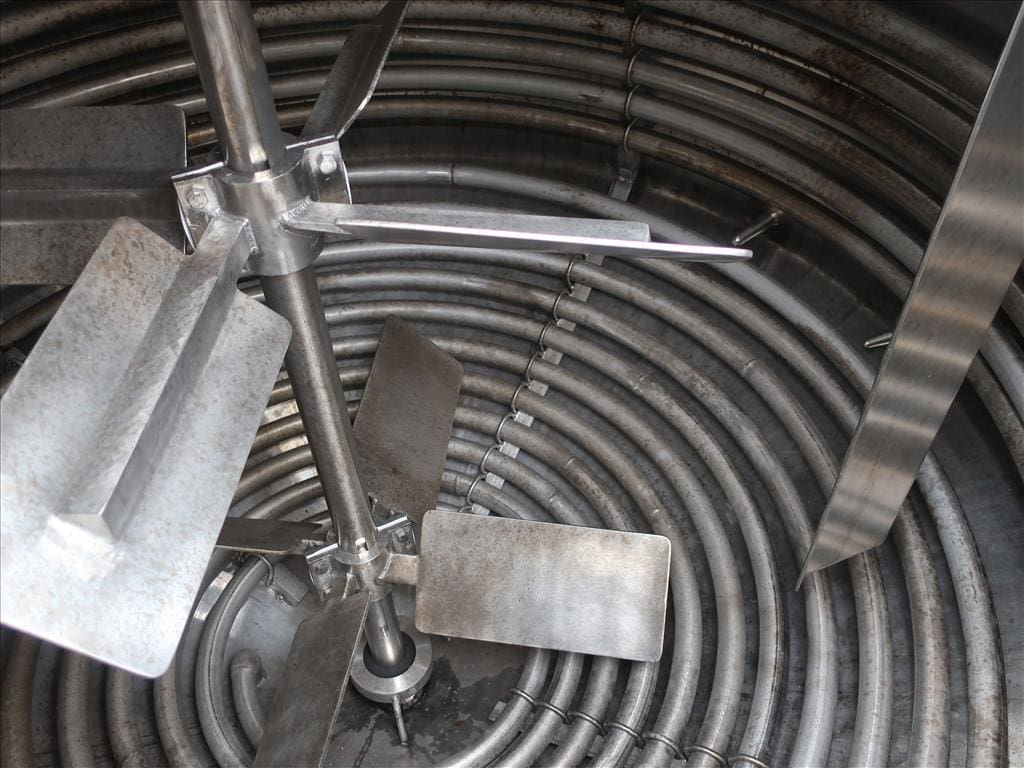

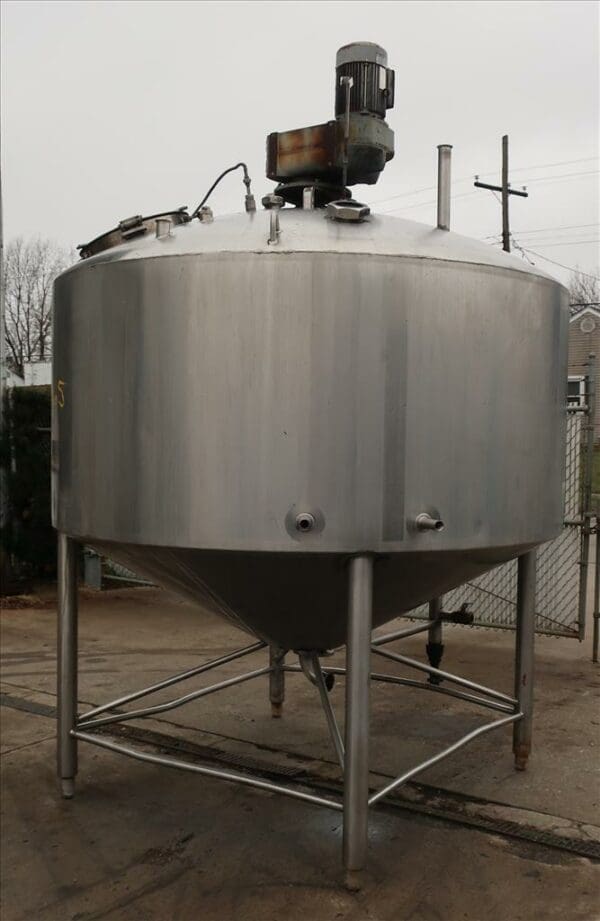

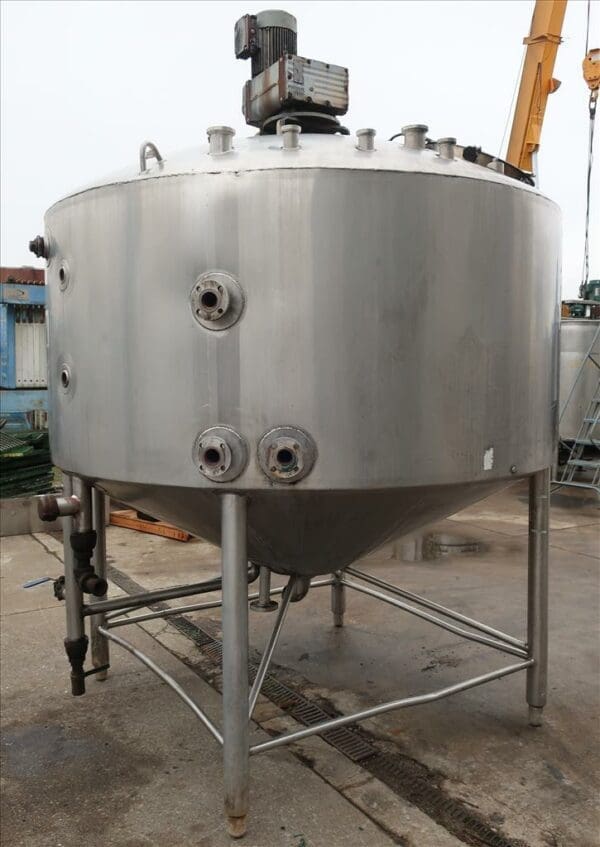

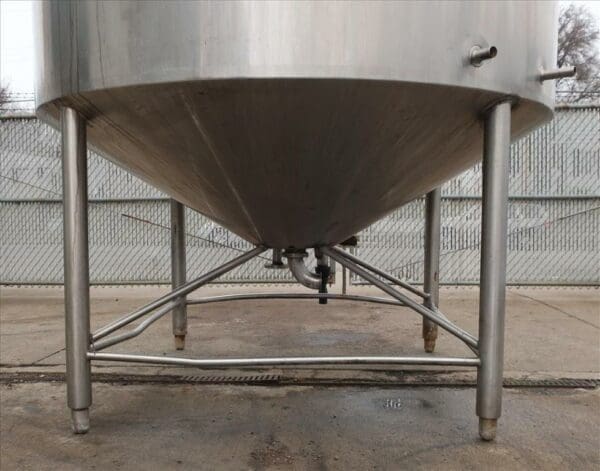

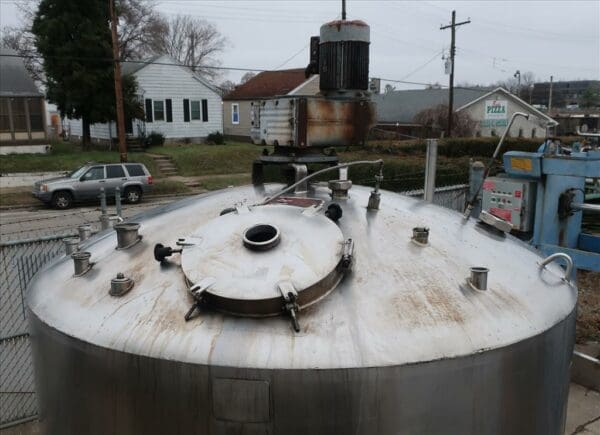

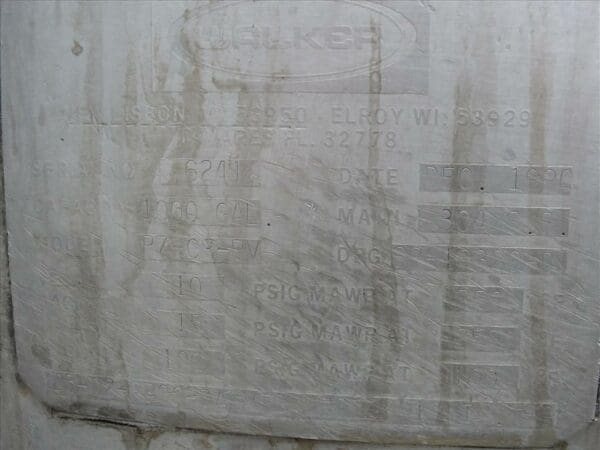

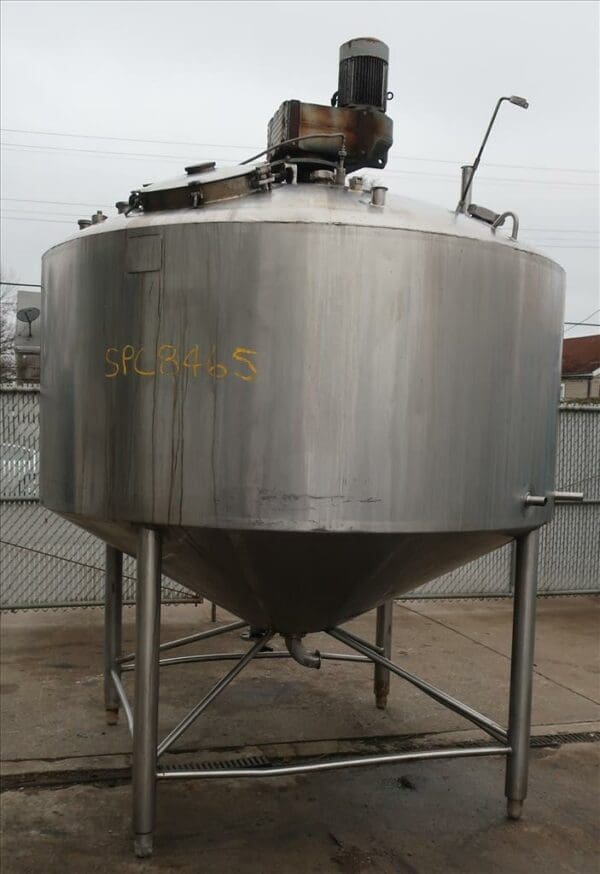

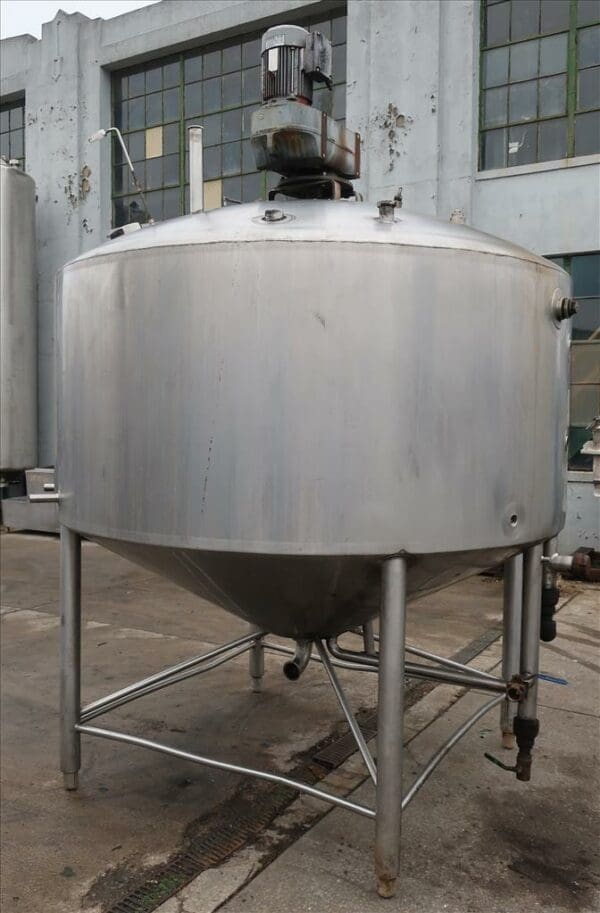

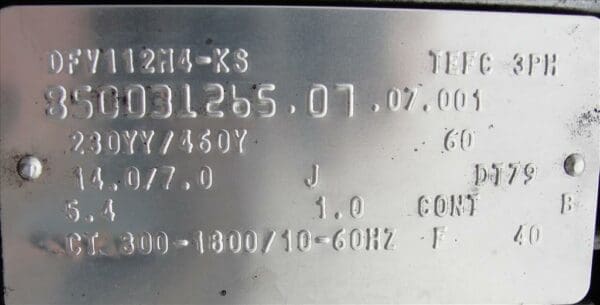

1,000 gallon Walker, processor, agitator top mount, 15 PSI jacket rating, 304 stainless steel, model P7-CB-PV, dome top, cone bottom on 4 legs, 10 PSI vessel rated. 39.75″ straight side, 24″ deep cone, internal coil 24″ tall rated for 100 PSI at 100 degrees F. 3 HP top mounted agitator with 2 sets of blades. 230/460 vac 3 phase, motor is REFC rated for Severe duty. 2 adjustable baffles inside, 18″ top manway, 4″ center bottom discharge, 2-thermowells, 2- 2″ NPT connections. Coil 2-1.5″ RFSO flanges
